So, looking at the schematics, I have 12v to the connector on the pink/black wire which comes directly from the #17 fuse - switched. The other wires in the connector come from the multi-function switch. With the rig on, wipers on high (or any setting) I get nothing at the connector on any of the wires coming from the multi-function switch. Power to the multi-function switch also comes from #17.
Does that mean the switch is at fault?
There is a test procedure in the FSM, so I guess I need to dig into that next.
So, looking at the schematics, I have 12v to the connector on the pink/black wire which comes directly from the #17 fuse - switched. The other wires in the connector come from the multi-function switch. With the rig on, wipers on high (or any setting) I get nothing at the connector on any of the wires coming from the multi-function switch. Power to the multi-function switch also comes from #17.
Does that mean the switch is at fault?
There is a test procedure in the FSM, so I guess I need to dig into that next.

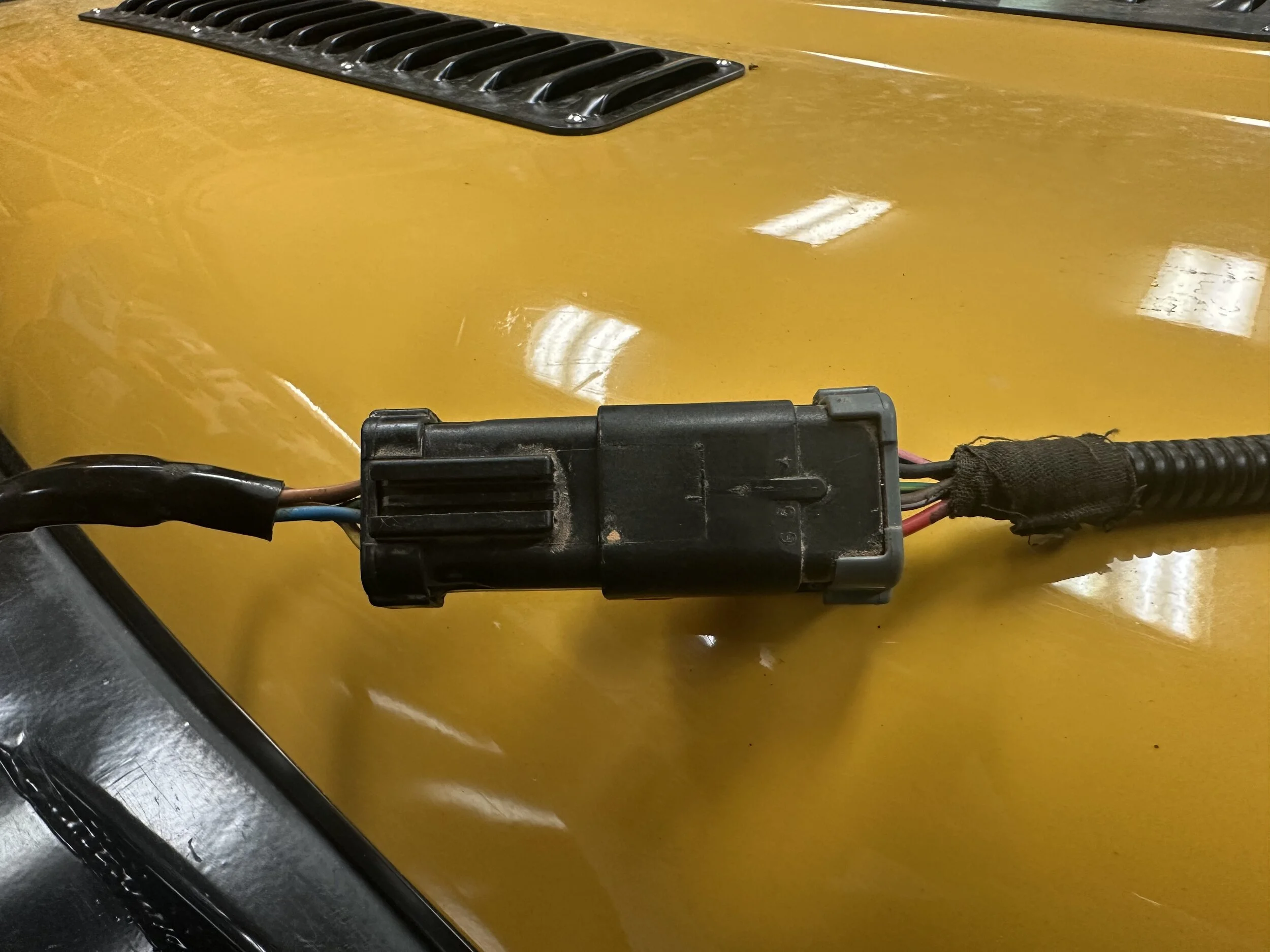

Who designs these things? The wire colors coming out of the Jeep do not match the colors on the motor. Close in colors - but not in location. So, ground on the motor is not black, it's brown. Black on the motor is the switched 12v. Stupid me, I assume the black wire on the motor was ground...
More than likely, that motor was designed for another vehicle by one engineer years before the wiring harness for your rig was designed by a different engineer. Due to other constraints on wire colors in the harness, they don't match. It's not cost-effective to create a new motor part number just to match colors up. That's how the design world works, like it or not...

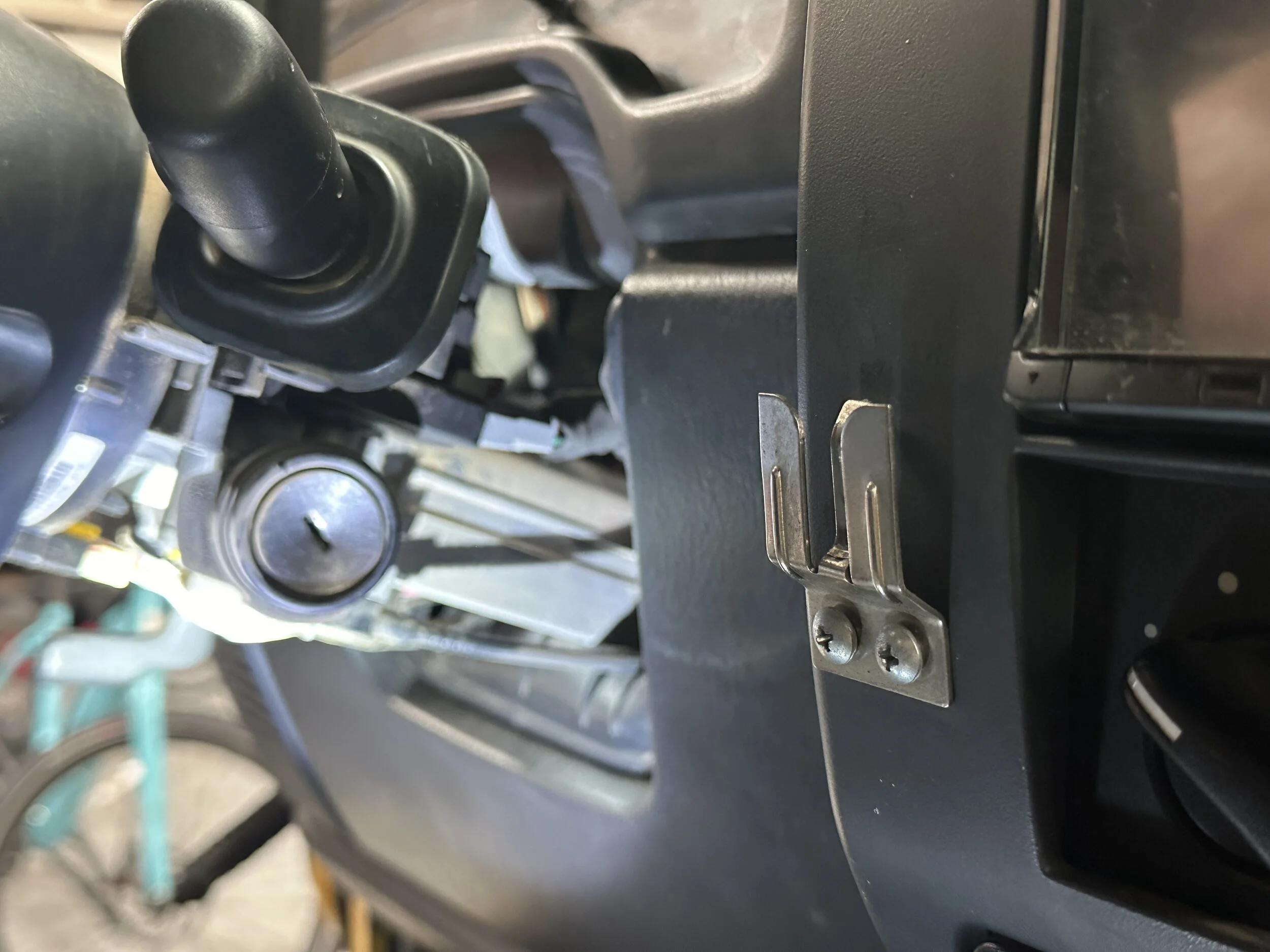

OK - found it. I pulled open the steering column to start to diagnose the multi-function switch - and I find this:
View attachment 523611
The grey connector on the back of the switch was loose. Must have jarred it loose working under the dash a few weeks ago. Pushed it in - and guess what…
Occam’s Razor…
OK - found it. I pulled open the steering column to start to diagnose the multi-function switch - and I find this:
View attachment 523611
The grey connector on the back of the switch was loose. Must have jarred it loose working under the dash a few weeks ago. Pushed it in - and guess what…
Occam’s Razor…
It also looks like the locking tab on the connector is not functioning, which may explain how it came loose. 20 year old vehicle, I guess…
